Injectors 1300cc 16-60-11-6c (6 cylinders)

Manufacturer: Bosch Motorsport

Part Number: 1300-16-60-11-6C

Product Description:

The SSSperformance injectors a are all new injector based on Bosch Motorsport. This is the best injector on the market. It is very different from a traditional injector. It idles smoother, is easier to tune with, and provides more consistant, better fuel delivery.

Flow Rate:

• Flow Rate in CC per minute: 1470 CC/min @ 58 PSI
• Flow Rate in LB per hour: 140 LBS/HR @ 58 PSI
• Flow Rate in CC per minute: 1270 CC/min @ 43.5 PSI
• Flow Rate in LB per hour: 122 LBS/HR @ 43.5

Fuel Compatibility:

• Compatible With All Known Fuels

Basic Specifications:

• Resistance: 12.8-14.5 Ohms
• Voltage: 8-15 Volts, Nominal 13.5 Volts
• Sample Latency: 1.1 ms at 14 volts,3 BAR
• Pressure: Min. 36 PSI (2.5 bar), Max. 101 PSI (7 bar)

Size:

• Injector Length: O-Ring to O-Ring: 60 mm
• Injector Overall Length: 74 mm
• Injector Body Diameter: 16mm
• Top O-Ring: 11mm
• Bottom Top O-Ring: 16mm

Connector:

• JETRONIC

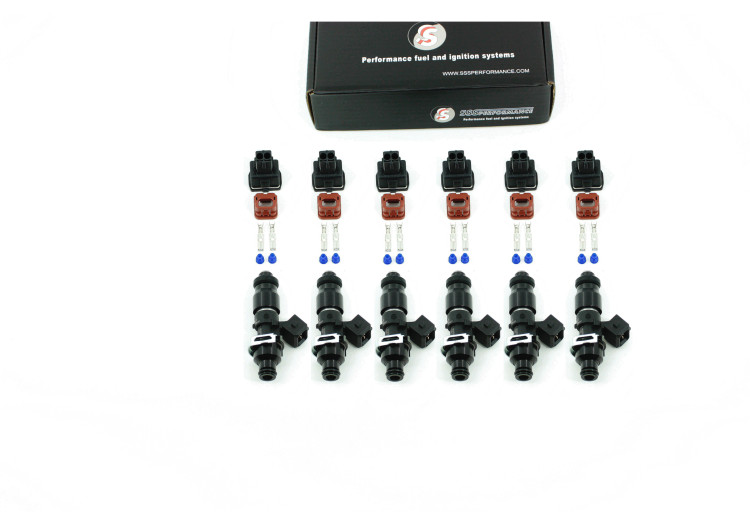

Includes

• Injectors
• Adapters
• Connectors for jetronic (if need)
